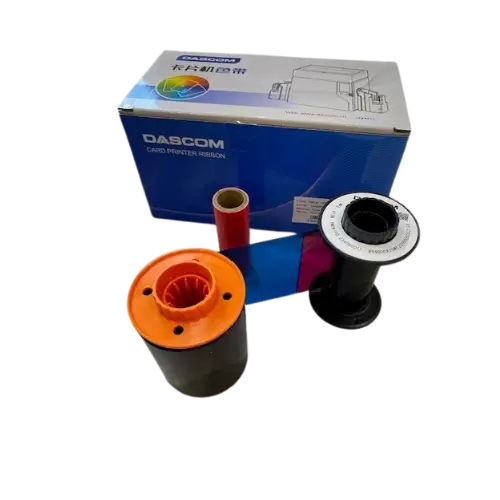

Ribbon Specifications:

• Panel Designations: C = Cyan Pigment, M = Magenta Pigment, Y = Yellow Pigment , K = Black Pigment, P = Primer
• Nominal Dimensions (roll): Height: 2.44 inches (62mm) Outside Diameter (rolled): Less than 2.91 inches (73.9mm) Length (unrolled): 1,770 Feet (539.5 m)
• Nominal Dimensions (box): Width Height
• Length: Unit 6.3 in (160 mm) x 4.3 in (109 mm) x 3.3 in (84 mm) Case 17.3 in (440 mm) x 12.3 in (313 mm) x 6.8 in (171 mm)
• Yield: 1000 images per roll
• Core Color: Datacard distinctive blue core with platinum flecks made with EcoPure biodegradable additive.
• Packaging: Each individual ribbon is packaged in a sealed clamshell.

Adhesive Cleaning Sleeve Specifications:

• Nominal Dimensions: 2.5 inches (6.35 cm) x 1.5 inches (3.81 cm) outside diameter
• Usage: Datacard recommends performing a cleaning cycle whenever a ribbon is replaced or as required by the end-user.
• Core Color: Datacard blue core
• Packaging: A removable, protective plastic layer that includes loading and usage instructions protects each individual cleaning sleeve.

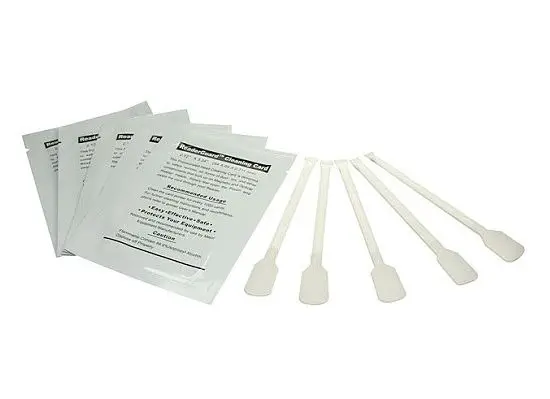

Isopropanol Cleaning Card Specifications:

• Nominal Dimensions: 3.375 inches (8.6 cm) x 2.125 inches (5.4 cm)
• Usage: Datacard recommends performing a cleaning cycle whenever a ribbon is replaced or as required by the end-user.
• Color: White
• Packaging: Each individual cleaning card is enclosed in a disposable, protective envelope. Each envelope has loading and usage instructions printed on the outside cover.

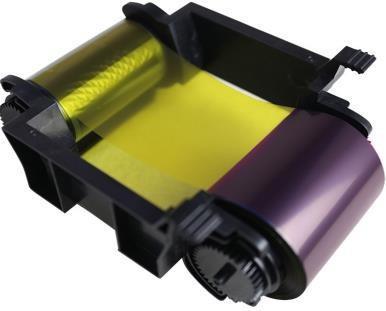

Ribbon Specifications:

• Panel Designations: C = Cyan Pigment, M = Magenta Pigment, Y = Yellow Pigment , K = Black Pigment, P = Primer
• Nominal Dimensions (roll): Height: 2.44 inches (62mm) Outside Diameter (rolled): Less than 2.98 inches (75.7mm) Length (unrolled): 1889.8 Feet (576m)
• Nominal Dimensions (box):
• Unit: 6.3 in (160 mm) x 4.3 in (109 mm) x 3.3 in (84 mm)
• Case: 17.3 inches (440 mm) x 12.3 inches (313 mm) x 6.8 inches (171 mm)
• Yield: 750 duplex printed cards per roll
• Core Color: Datacard
